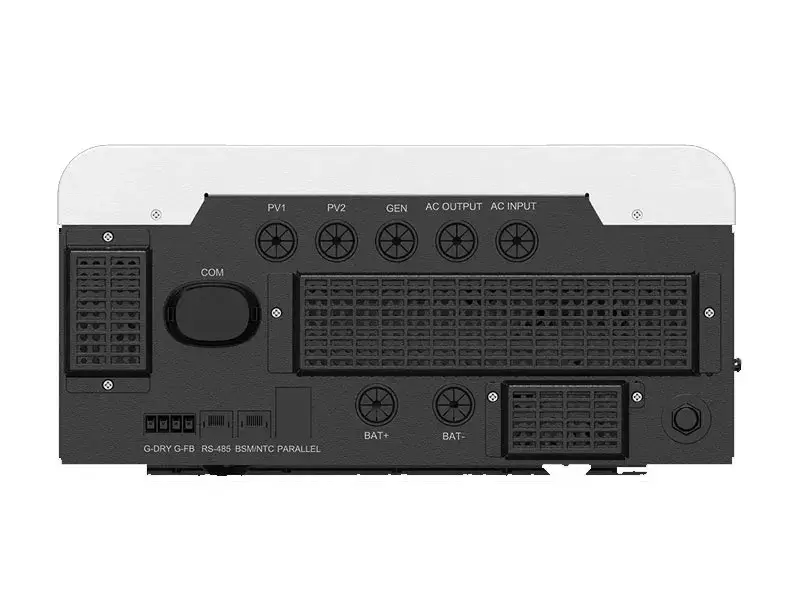

The Solis S5-EO1P5K-48 is a 5kW single-phase, low-voltage (48V) off-grid inverter. It is specifically designed for remote power systems where a grid connection is unavailable. It integrates a high-voltage MPPT solar charger (up to 500V input) and an AC charger. It features a surge capacity of 10kVA to handle inductive loads and a typical transfer time of 10ms. The -P variant (S5-EO1P5K-48-P) supports parallel capability for up to 6 units, allowing for system expansion. This model is distinct from grid-interactive hybrid inverters. Key Features & Specifications:

• Rated Output Power: 5 kVA / 5 kW

• Battery Voltage: 48V

• Battery Type: Li-ion / Lead-acid

• Max. Charge / Discharge Current: 100 A

• Output Voltage Waveform: Pure Sine Wave

• Surge Capacity: 10 kVA

• Transfer Time: 10 ms (Typical), 20 ms (Max)

• Solar Charger Type: MPPT

• Recommended Max PV Power: 5.5 kW

• Max. PV Input Voltage: 500 V

• MPPT Voltage Range: 90-480 V

• Max. Solar Charge Current: 100 A

• Max. AC Charge Current: 80 A

• Ingress Protection: IP21

• Dimensions (WxHxD): 335 mm x 450 mm x 160 mm
